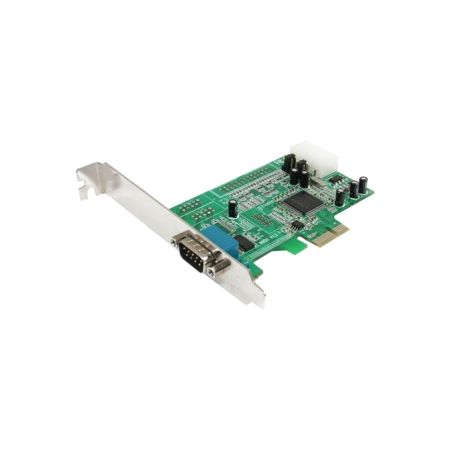

StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART Item # 3414601
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
3414601
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot.The PEX1S553 PCI Express Serial adapter card allows you to turn a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.The PCI Express (RS232) Serial Adapter Card is compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista /Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, as well as MAC OS X 10.4 and above. The adapter card includes an optional half-height/low profile bracket, that lets you add a serial port to virtually any computer, regardless of the case form factor.This product is a replacement for the PEX1S552 card.
Product Details
| Item # | 3414601 |
| OfficeMax # | 23568275 |
| Manufacturer # | DN9010 |
| maximum data transfer rate | 3.60 Mbit/s |
| height | 0.8 in |
| Additional Information | Native single-chip, single lane PCI Express chipset delivers true PCIe performance.; Standard and low profile/half-height bracket included to ensure fitment in any system.; Easy to install and use with full step-by-step instructions saving time and hassle. |
| quantity | 1 |
| width | 4.7 in |
| package contents | 1 Port PCIe RS232 Serial Adapter Card; Standard and Low Profile/half-height Bracket |
| depth | 4.1 in |
| Product Name | 1 Port PCIe RS232 Serial Adapter Card |
| manufacturer | StarTech.com |
| Host Interface | PCI Express |
| weight | 1.80 oz |
| brand name | StarTech |
| length | 4.1 in. |
| UART Type | 16550 |
| Number of Serial Ports (External) | 1 |
| Platform Supported | PC |
| form factor | Plug-in Card |
| warranty length | 2-year limited |
| model name | PEX1S553 |
| Show More ▾ |
